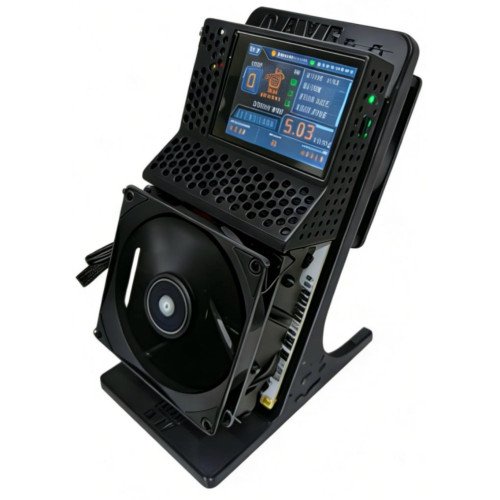

NMQAxe++ Black Enclosed Miner – 4× BM1370 – 4.3TH/s Default / Up to 5.7TH/s – Touchscreen

The NMQAxe++ ASIC Bitcoin Miner is a powerful four-chip SHA-256 home miner designed for enthusiasts looking for considerably more performance than a traditional single-chip miner while retaining a compact, desktop-friendly design.

Powered by 4 × BM1370 ASIC chips, the NMQAxe++ typically delivers approximately 4.3–4.8 TH/s at its standard/default settings, with performance of up to approximately 5.7 TH/s potentially available through advanced tuning.

Designed for both solo mining and pool mining, the NMQAxe++ can be used with Bitcoin (BTC), Bitcoin Cash (BCH), eCash (XEC), DigiByte (DGB) and other compatible SHA-256 cryptocurrencies.

With Wi-Fi connectivity, advanced monitoring and tuning, intelligent electrical protection and an impressive 2.8-inch full-colour touchscreen, the NMQAxe++ provides serious multi-chip mining performance in a compact home-friendly package.

At eHasher, each miner is individually inspected and bench-tested before dispatch, with particular attention paid to operating stability, cooling performance and overall functionality.

Approx. 4.3–4.8 TH/s Default – Up to Approx. 5.7 TH/s Tuned

At its standard/default operating settings, the NMQAxe++ typically delivers approximately 4.3–4.8 TH/s, providing a balance between hashrate, electrical efficiency, temperature and noise.

For experienced users wanting additional performance, frequency and core voltage settings can be adjusted through the miner's management interface. During previous eHasher testing, approximately 5.5–5.7 TH/s has been achieved through advanced tuning.

Although higher performance figures may sometimes be possible depending on the individual miner, firmware, cooling and operating environment, eHasher advertises approximately 5.7 TH/s as the maximum previously tested performance rather than claiming performance that may activate the miner's protection circuitry or may not be sustainable on every unit.

Increasing frequency and core voltage will increase power consumption and heat output. Advanced tuning should therefore be carried out gradually while carefully monitoring the miner's operating temperatures.

Original Cooling Configuration

The NMQAxe++ uses a substantial main heatsink and active fan cooling system designed to remove heat generated by its four BM1370 ASIC chips.

The miner is supplied with its original cooling arrangement, allowing the cooling system and fan control to operate as designed.

During previous eHasher testing, VCORE / power-stage temperatures of approximately 72–75°C were observed at standard settings producing around 4.3–4.8 TH/s.

When tuned towards approximately 5.5–5.7 TH/s, temperatures of approximately 92–105°C were observed depending on frequency, core voltage, ambient temperature and operating conditions.

These temperatures are provided as examples from previous testing and should not be interpreted as guaranteed operating temperatures. Actual results may vary, particularly when operating settings or cooling configurations differ.

For reliable everyday operation, eHasher recommends using the miner's standard settings unless the user has sufficient experience to monitor and manage the additional electrical and thermal demands associated with advanced tuning.

Advanced Power-Stage Temperature Monitoring

An important feature of the NMQAxe++ is the way in which its power delivery temperature is monitored.

The miner uses a Texas Instruments CSD95472Q5MC power stage. This component provides a dedicated TAO/FAULT temperature analogue output, which reports a voltage proportional to the internal die temperature.

This is important when interpreting the temperature displayed by the NMQAxe++, because this measurement should not be directly compared with PCB, external VRM or surrounding board temperature measurements used by some other miner designs.

A power-stage temperature approaching or exceeding 100°C may therefore initially appear unusually high when compared with another miner displaying a PCB-level temperature, even though the two readings may represent significantly different measurement points.

According to Texas Instruments, the CSD95472Q5MC has a recommended operating temperature range of -40°C to 125°C, with an absolute maximum operating junction temperature of 150°C.

These component specifications should not be interpreted as recommended operating targets for the complete miner. Lower operating temperatures are generally preferable for continuous use.

For customers wanting to examine the component specifications directly, the manufacturer's technical datasheet is available here:

Texas Instruments CSD95472Q5MC Technical Datasheet

The NMQAxe++ firmware also incorporates temperature monitoring and protection designed to help prevent the power circuitry from being operated beyond its intended limits.

Intelligent Current / Overload Protection

The NMQAxe++ incorporates intelligent current and overload protection designed to protect the miner's power delivery circuitry when advanced tuning settings demand excessive current.

If frequency or core voltage settings are pushed beyond the electrical limits of the miner, the protection system can intervene and stop normal mining operation rather than allowing the miner to continue operating under excessive electrical load.

If protection is activated, performance settings should be reduced towards the standard/default configuration before normal operation is resumed.

These protection features provide an additional safeguard, although they do not eliminate the risks associated with excessive electrical or thermal loading.

2.8" Full-Colour Touchscreen Display

One of the standout features of the NMQAxe++ is its 2.8-inch full-colour IPS capacitive touchscreen.

Rather than simply displaying a fixed status page, the touchscreen provides access to a variety of display screens showing different mining, system and cryptocurrency information.

Depending on the selected display mode, information can include:

• Current hashrate
• ASIC and system information
• Power and operating statistics
• Temperature information
• Mining statistics
• Network information
• Cryptocurrency market information
• Clock display
• ASIC / hashrate distribution information

The display can be changed directly using the touchscreen interface, allowing you to quickly select the information you want to see without accessing the web management interface.

Custom Photo Screensaver

The NMQAxe++ allows you to upload your own image for use with the screensaver function, adding an extra level of personalisation to the miner.

This is particularly useful for desktop or home display use and allows you to personalise the unit with your own photograph, logo or other compatible image.

Simple Plug & Play Setup

Getting started is straightforward. Simply connect the supplied 12V / 10A power supply, power on the miner and connect it to your Wi-Fi network.

Once connected, the miner's local IP address can be used to access its web-based management interface from another device on the same network.

No specialist mining hardware or networking knowledge is required for standard operation, making the NMQAxe++ suitable for newcomers to multi-chip home mining as well as experienced mining enthusiasts.

Advanced Performance Tuning & Customisation

The NMQAxe++ provides extensive configuration options through its management interface, including:

• ASIC core voltage settings
• Mining frequency and clock speed
• Mining pool configuration
• Screen brightness
• Display orientation and screen rotation
• Screensaver settings
• Custom screensaver image
• Performance monitoring
• Temperature monitoring

This allows experienced users to find their preferred balance between hashrate, power consumption, operating temperature and noise.

Centralised Monitoring & Firmware Updates

The NMQAxe++ supports NMController, allowing compatible devices to be monitored and managed from a central interface.

Firmware can also be maintained and updated using supported update methods, including:

• AxeOS Online Updates
• NMFlash Web Tool
• Manual firmware updates

Available update methods may depend on the installed firmware version and device compatibility.

Key Features

• Default Performance: Approx. 4.3–4.8 TH/s
• Maximum Previously Tested Performance: Up to Approx. 5.7 TH/s*
• ASIC Chips: 4 × BM1370
• Algorithm: SHA-256
• Mining: Solo Mining & Pool Mining
• Compatible Coins: BTC, BCH, XEC, DGB and other SHA-256 cryptocurrencies
• Display: 2.8" Full-Colour IPS Touchscreen
• Touch Control: Capacitive Touch
• Custom Screensaver: Upload your own compatible image
• Connectivity: Wi-Fi 802.11 b/g/n
• Management: Web Interface, AxeOS & NMController
• Performance Tuning: Frequency & Core Voltage Adjustment
• Protection: Current / Overload & Thermal Protection
• Power-Stage Monitoring: Texas Instruments CSD95472Q5MC temperature monitoring
• Cooling: Original ASIC heatsink with active fan cooling
• Firmware Updates: Supported
• Quality Control: Individually inspected and bench-tested by eHasher before dispatch

Technical Specifications

• Model: NMQAxe++
• ASIC: 4 × BM1370
• Default Hashrate: Approx. 4.3–4.8 TH/s
• Maximum Previously Tested Hashrate: Up to Approx. 5.7 TH/s*
• Default Power Consumption: Approx. 84W
• Maximum Previously Tested Power Consumption: Approx. 109W*
• Default Efficiency: Approx. 17.5 J/TH
• Power Stage: Texas Instruments CSD95472Q5MC
• Core Control Board: NM-Display-280
• Master MCU: ESP32-S3R8 Xtensa32 Dual-Core Processor
• Wi-Fi: 802.11 b/g/n (up to 150 Mbps)
• Memory: 512KB SRAM, 8MB PSRAM, 384KB ROM, 16MB SPI Flash
• Display: 2.8" IPS TFT-LCD (240 × 320 Full Colour)
• Touchscreen: Capacitive Touch
• Power Input: DC 5.5 × 2.5mm
• Power Supply: 12V / 10A (100–240V AC Input)
• Device Management: Touchscreen, Web Interface, AxeOS & NMController
• Cooling: Original ASIC heatsink with active fan cooling
• Warranty: 90 Days

What's Included

• 1 × NMQAxe++ ASIC Crypto Miner
• 1 × 12V / 10A Power Supply
• 1 × Appropriate Mains Power Cable
• 1 × User Instructions

The 2.8" touchscreen display and Wi-Fi connectivity are integrated into the supplied miner.

Performance & Tuning Information

Approximately 4.3–4.8 TH/s is the typical performance range at standard/default settings. Performance of up to approximately 5.7 TH/s has previously been achieved through advanced tuning, although this is not guaranteed.

Hashrate naturally fluctuates and individual results can vary depending on operating settings, firmware, ambient temperature, cooling conditions and individual ASIC characteristics.

Increasing mining frequency or core voltage increases power consumption and heat output. Temperatures should therefore be monitored carefully whenever performance settings are changed.

During previous eHasher testing, VCORE / power-stage readings of approximately 72–75°C at standard settings and approximately 92–105°C when heavily tuned were observed. These figures are provided as historical examples and may differ when using the original cooling configuration.

The miner's built-in current, overload and thermal protection may intervene if operating settings demand excessive current or temperature limits are approached. If protection activates, tuning settings should be reduced before operation is resumed.

The NMQAxe++ combines four BM1370 ASIC chips, multi-terahash SHA-256 performance, intelligent electrical protection, advanced power-stage temperature monitoring and a highly customisable touchscreen interface in a compact home-friendly package.

Supplied with its original cooling configuration and individually bench-tested by eHasher before dispatch, the NMQAxe++ offers a versatile solution for enthusiasts interested in home Bitcoin mining, solo mining and SHA-256 experimentation.
