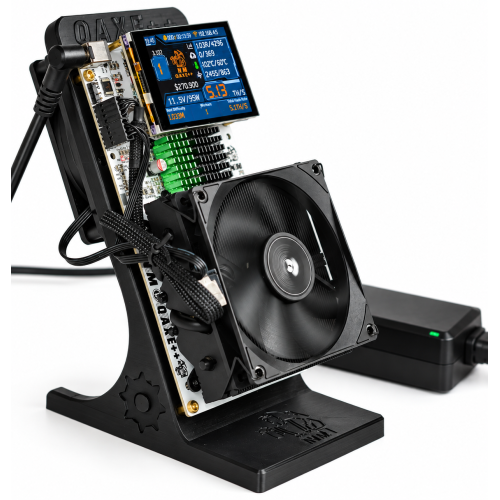

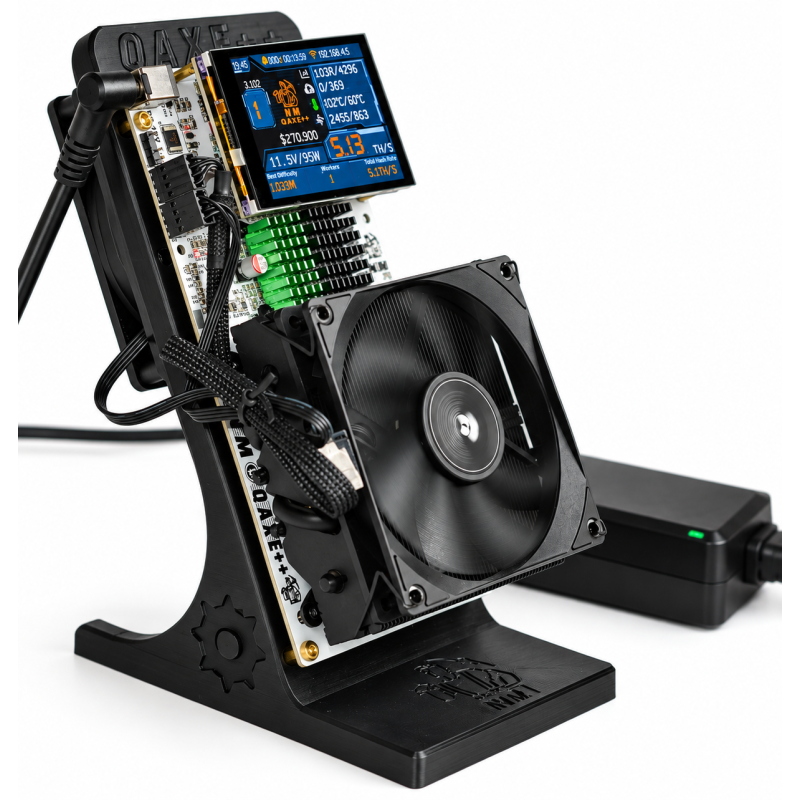

NMQAxe++ Black Bitcoin Miner – 4× BM1370 – 4.8TH/s Default / Up to 5.7TH/s – Touchscreen

The NMQAxe++ ASIC Crypto Miner is a powerful four-chip SHA-256 miner designed for home mining enthusiasts looking for considerably more performance than a traditional single-chip miner while retaining a compact, desktop-friendly design.

Powered by 4 × BM1370 ASIC chips, the NMQAxe++ delivers approximately 4.8 TH/s at around 84W at its standard/default settings, with performance of up to approximately 5.7 TH/s at around 109W available through advanced tuning.

Designed for both solo mining and pool mining, the NMQAxe++ can be used with Bitcoin (BTC), Bitcoin Cash (BCH), eCash (XEC), DigiByte (DGB) and other compatible SHA-256 cryptocurrencies. Whether you're enjoying Bitcoin lottery mining or building a more substantial home mining setup, the NMQAxe++ combines serious multi-chip performance with Wi-Fi connectivity, advanced cooling and an impressive full-colour touchscreen interface.

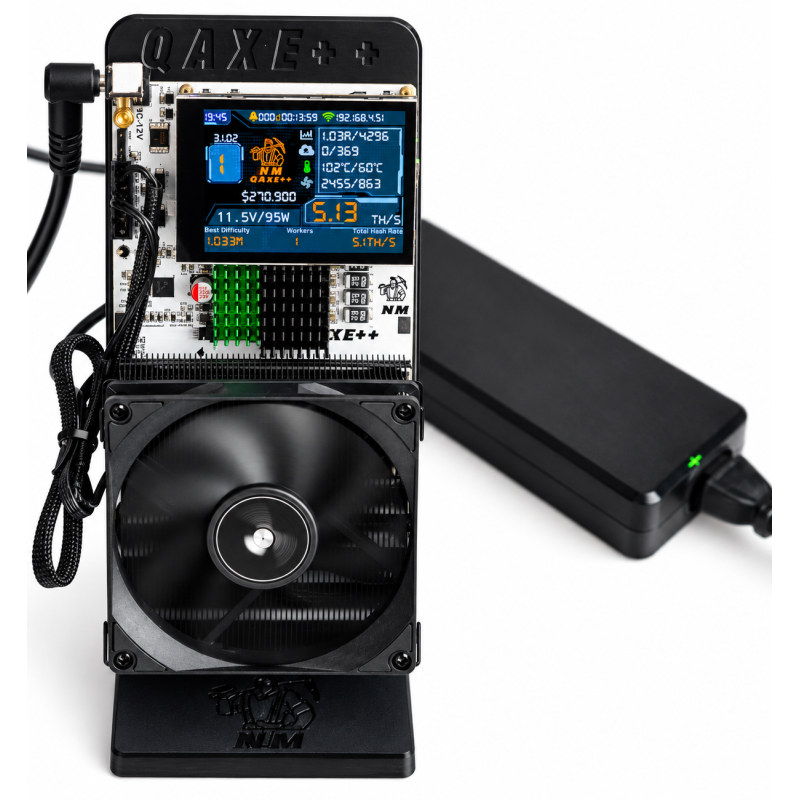

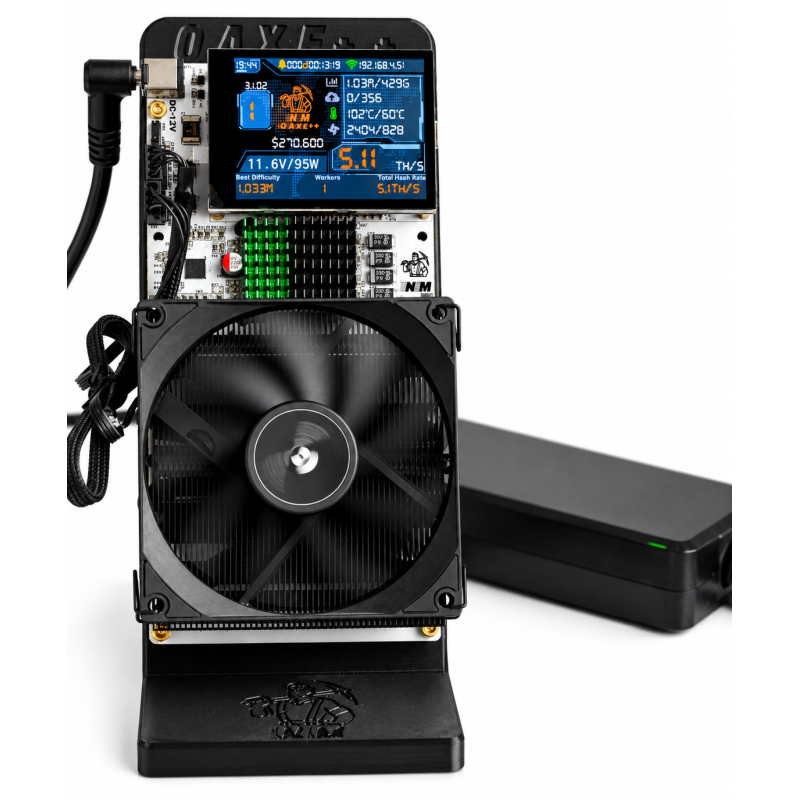

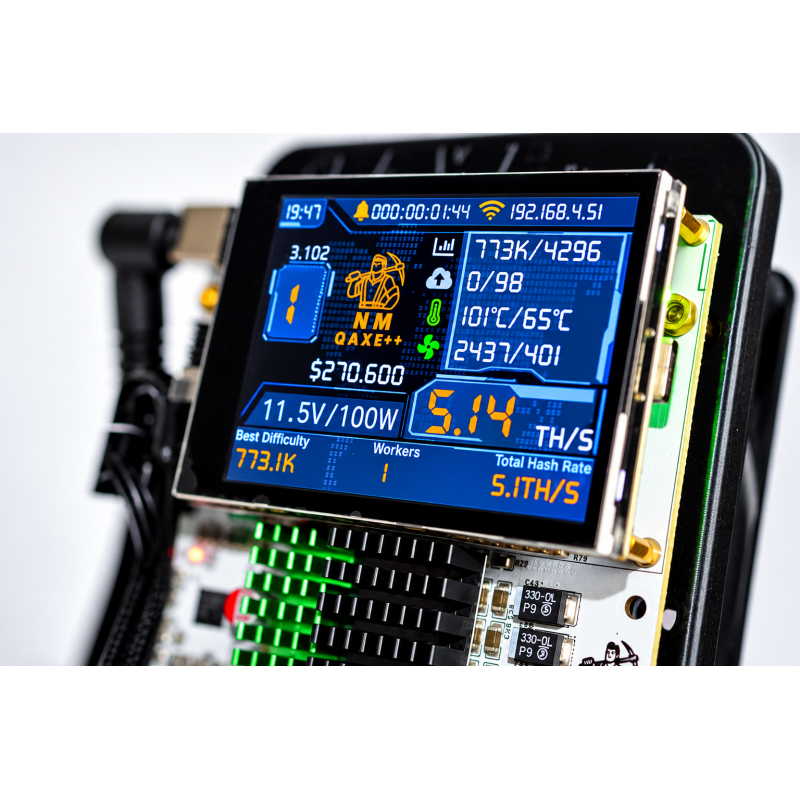

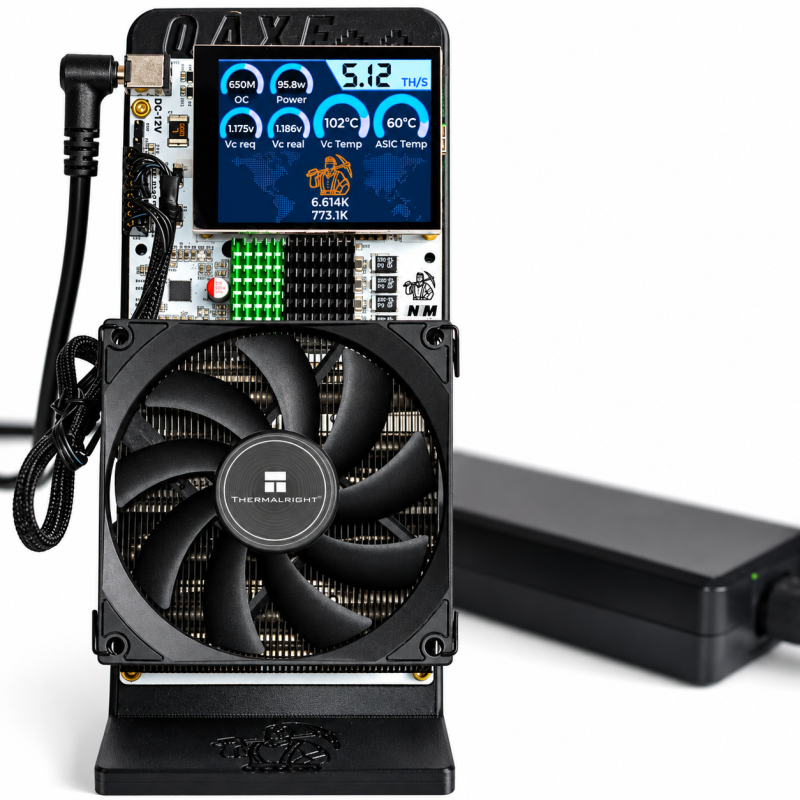

2.8" Full-Colour Touchscreen Display

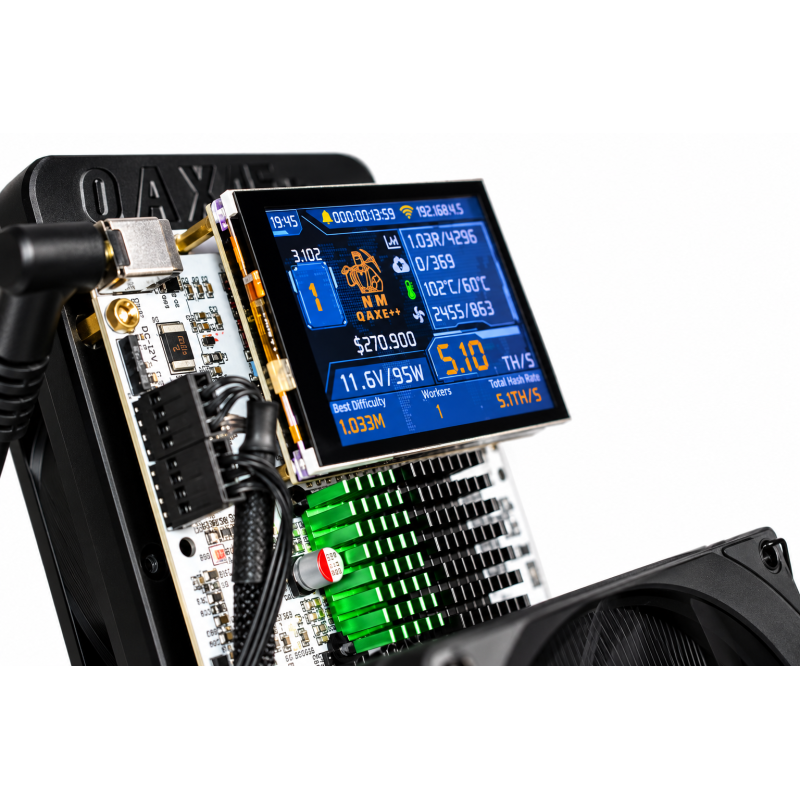

One of the standout features of the NMQAxe++ is its 2.8-inch full-colour IPS capacitive touchscreen. Rather than simply displaying a fixed status page, the touchscreen provides access to a variety of display screens showing different mining, system and cryptocurrency information.

Depending on the selected display mode, information can include:

• Current hashrate
• ASIC and system information
• Power and operating statistics
• Mining statistics
• Network information

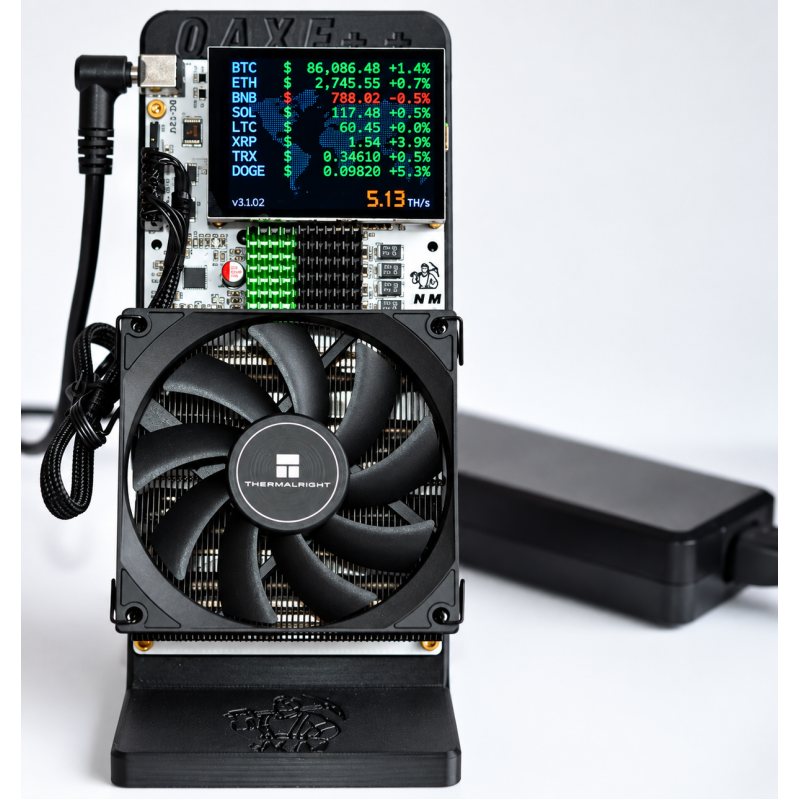

• Cryptocurrency market information
• Clock display
• ASIC / hashrate distribution information

The display can be changed directly using the touchscreen interface, allowing you to quickly select the information you want to see without accessing the web management interface.

Custom Photo Screensaver

The NMQAxe++ also allows you to upload your own image for use with the screensaver function, adding an extra level of personalisation to the miner.

This is particularly useful for desktop or home display use and allows you to personalise the unit with your own photograph, logo or other compatible image.

Approx. 4.8 TH/s Default – Up to Approx. 5.7 TH/s

At its standard/default operating settings, the NMQAxe++ typically delivers approximately 4.8 TH/s at around 84W.

For users wanting additional performance, frequency and core voltage settings can be adjusted through the miner's management interface. With appropriate tuning and cooling, performance can reach up to approximately 5.7 TH/s at around 109W.

The default configuration also provides the better balance between performance and electrical efficiency, operating at approximately 17.5 J/TH.

The miner incorporates intelligent current / overload protection. If operating parameters demand excessive current, the protection system can intervene rather than allowing the miner to continue operating outside its intended electrical limits.

This provides an additional level of protection when experimenting with advanced performance settings.

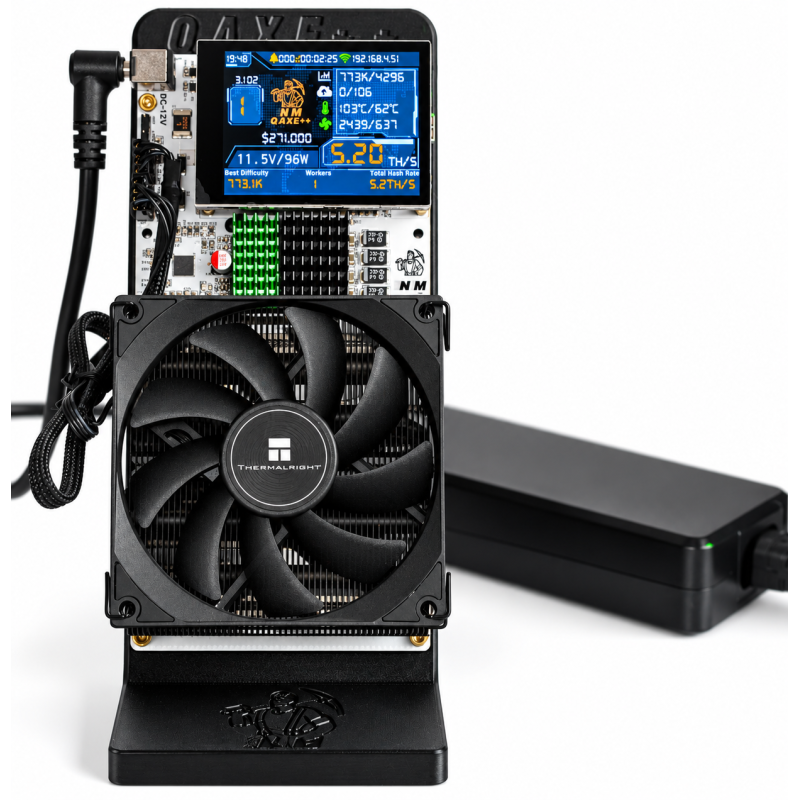

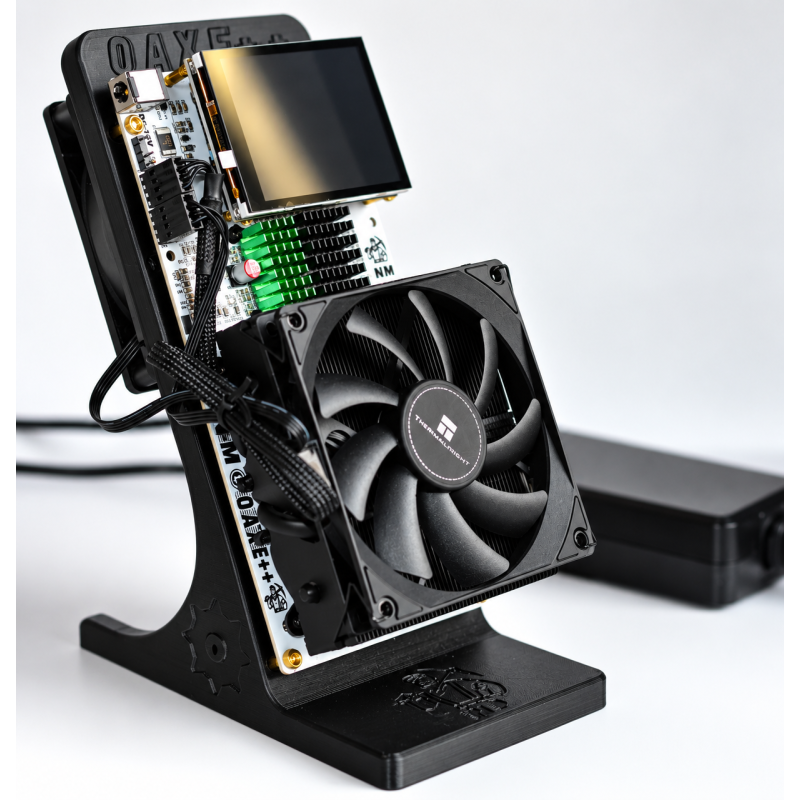

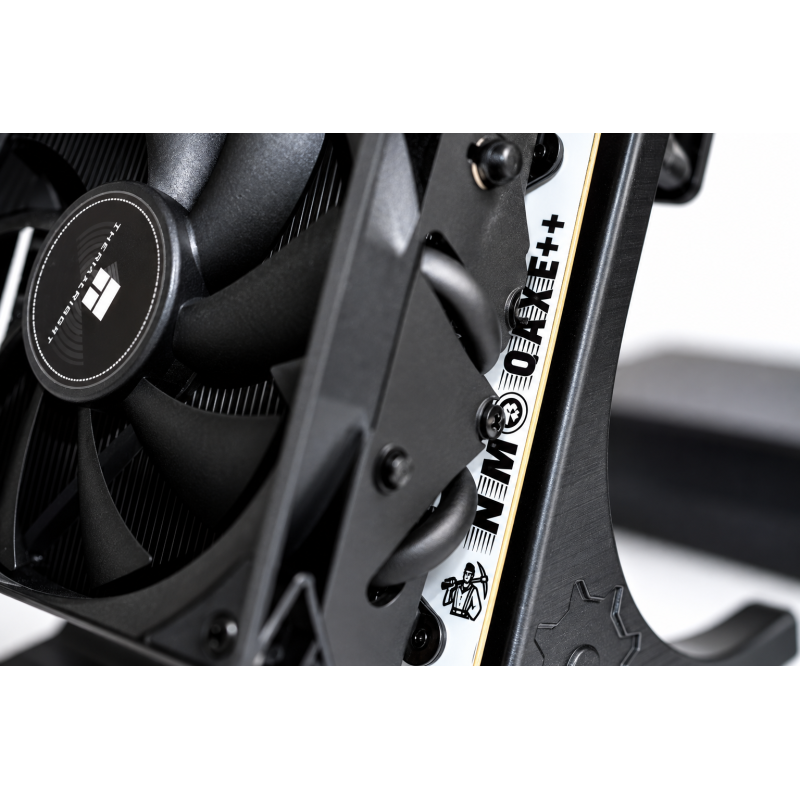

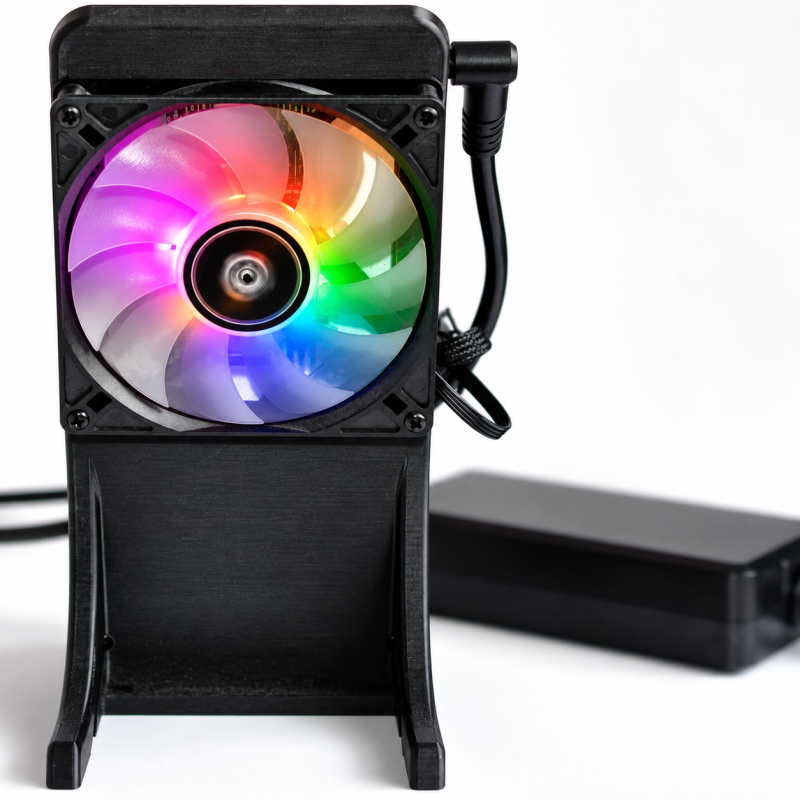

Advanced Cooling Configuration

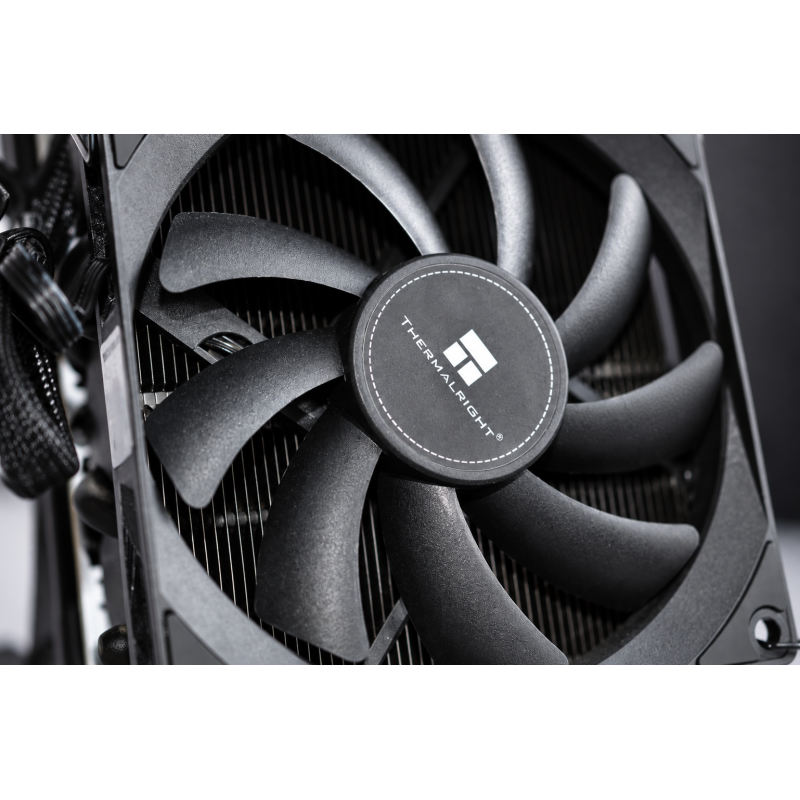

The NMQAxe++ uses a substantial heatsink and active cooling arrangement designed to provide effective airflow across the miner.

The open cooling configuration allows improved airflow around the heatsink, PCB and associated components while also giving the miner its distinctive enthusiast-style appearance.

Temperatures should always be monitored carefully when increasing frequency or core voltage settings, as higher performance settings will increase both power consumption and heat output.

Simple Plug & Play Setup

Getting started is straightforward. Simply connect the supplied 12V / 10A power supply, power on the miner and connect it to your Wi-Fi network.

Once connected, the miner's local IP address can be used to access its web-based management interface from another device on the same network.

No specialist mining hardware or networking knowledge is required, making the NMQAxe++ suitable for newcomers to multi-chip home mining as well as experienced enthusiasts.

Advanced Performance Tuning & Customisation

The NMQAxe++ provides extensive configuration options through its management interface, including:

• ASIC core voltage settings
• Mining frequency and clock speed
• Mining pool configuration
• Screen brightness
• Display orientation and screen rotation
• Screensaver settings
• Custom screensaver image
• Performance and temperature monitoring

This allows users to find their preferred balance between hashrate, power consumption, operating temperature and noise.

Centralised Monitoring & Firmware Updates

The NMQAxe++ supports NMController, allowing compatible devices to be monitored and managed from a central interface.

Firmware can also be maintained and updated using supported update methods, including:

• AxeOS Online Updates
• NMFlash Web Tool
• Manual firmware updates

This allows users to benefit from future firmware improvements, features and optimisations as they become available.

Key Features

• Default Performance: Approx. 4.8 TH/s @ ~84W
• Maximum Tuned Performance: Up to Approx. 5.7 TH/s @ ~109W*
• ASIC Chips: 4 × BM1370
• Algorithm: SHA-256
• Default Efficiency: Approx. 17.5 J/TH
• Mining: Solo Mining & Pool Mining
• Compatible Coins: BTC, BCH, XEC, DGB and other SHA-256 cryptocurrencies
• Display: 2.8" Full-Colour IPS Touchscreen
• Touch Control: Capacitive Touch
• Custom Screensaver: Upload your own compatible image
• Connectivity: Wi-Fi 802.11 b/g/n
• Management: Web Interface, AxeOS & NMController
• Performance Tuning: Frequency & Core Voltage Adjustment
• Protection: Intelligent Current / Overload Protection

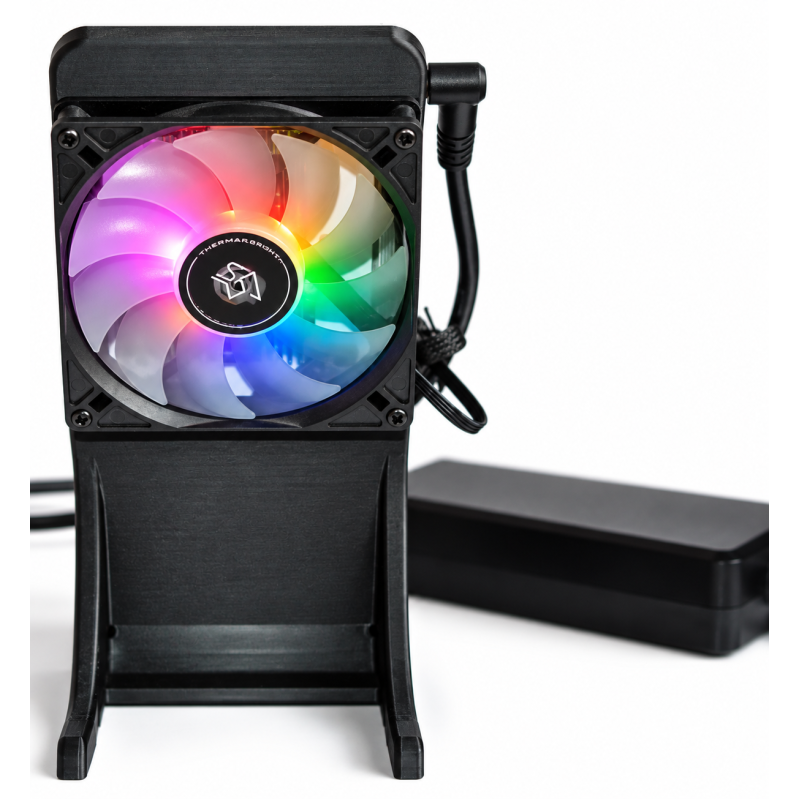

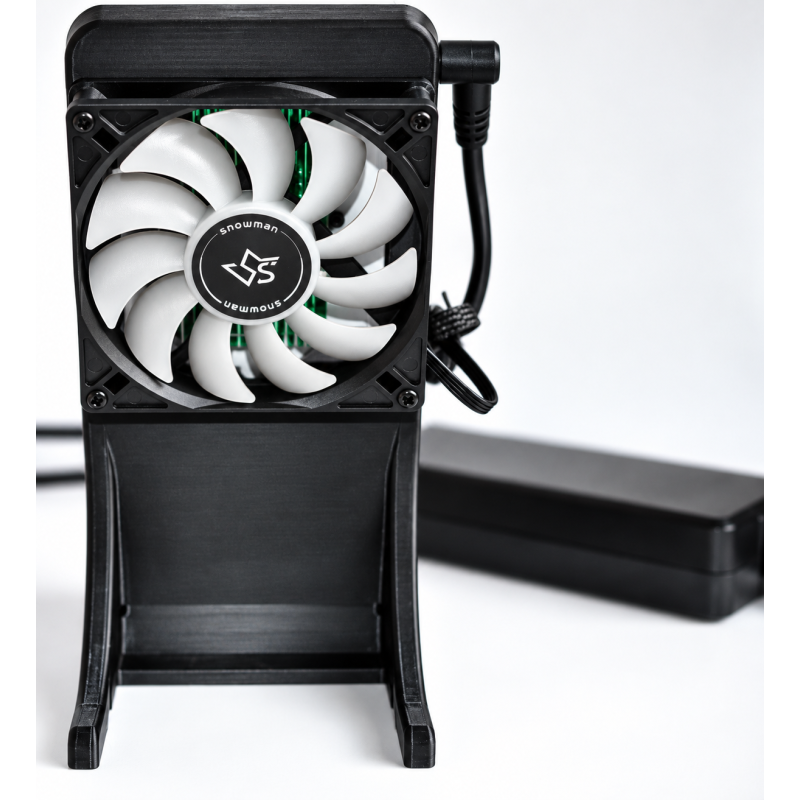

• Cooling: Large heatsink with active front and rear cooling
• Firmware Updates: Supported

Technical Specifications

• Model: NMQAxe++
• ASIC: 4 × BM1370
• Default Hashrate: Approx. 4.8 TH/s
• Default Power Consumption: Approx. 84W
• Default Efficiency: Approx. 17.5 J/TH
• Maximum Tuned Hashrate: Up to Approx. 5.7 TH/s*
• Maximum Tuned Power Consumption: Approx. 109W*
• Core Control Board: NM-Display-280
• Master MCU: ESP32-S3R8 Xtensa32 Dual-Core Processor
• Wi-Fi: 802.11 b/g/n (up to 150 Mbps)
• Memory: 512KB SRAM, 8MB PSRAM, 384KB ROM, 16MB SPI Flash
• Display: 2.8" IPS TFT-LCD (240 × 320 Full Colour)
• Touchscreen: Capacitive Touch
• Power Input: DC 5.5 × 2.5mm
• Power Supply: 12V / 10A (100–240V AC Input)
• Device Management: Touchscreen, Web Interface, AxeOS & NMController
• Cooling: High-performance heatsink with active fan cooling

What's Included

• 1 × NMQAxe++ ASIC Crypto Miner
• 1 × 12V / 10A Power Supply
• 1 × Appropriate Mains Power Cable
• 1 × User Instructions

The 2.8" touchscreen display and Wi-Fi connectivity are integrated into the miner.

Performance & Tuning Information

Approximately 4.8 TH/s at around 84W is the expected performance at the standard/default configuration. Performance of up to approximately 5.7 TH/s at around 109W may be achievable through advanced tuning.

Hashrate naturally fluctuates and individual results can vary depending on operating settings, firmware, ambient temperature, cooling conditions and individual ASIC characteristics.

Increasing mining frequency or core voltage can increase power consumption and heat output. ASIC and voltage regulator temperatures should therefore be monitored carefully whenever performance settings are changed.

The miner's built-in current / overload protection may intervene if operating settings demand excessive current. Maximum tuned performance figures are therefore not guaranteed continuously.

The NMQAxe++ combines multi-terahash SHA-256 mining performance, four BM1370 ASIC chips, advanced monitoring and tuning capabilities, intelligent protection and a highly customisable touchscreen interface in a compact home-friendly package.
